Your Location: Home >> Product Center >> LED Corn Light >> LED CFL Corn Light >> U COB LED CFL Light
| Name: | U COB LED CFL Light |
|---|---|
| Product name: | COB LED Corn Light |
| Available power: | 7W 9W 12W 16W 24W 30W 36W |
| Beam angle: | 360 Degree |
| LED Chip: | Epistar COB Stick 8pcs |
| Lamp Luminous Efficiency(lm/w): | 85 |
| Working Lifetime(Hour): | 35000 |
| Dimension: | 59172mm |
| Base Optional: | E14/ E26 / E27 / B22 |
| Color Temperature(CCT): | 2700~6500K |
| Material: | Glass + Fire Resistence Plistic |
PRODUCT DESCRIPTION

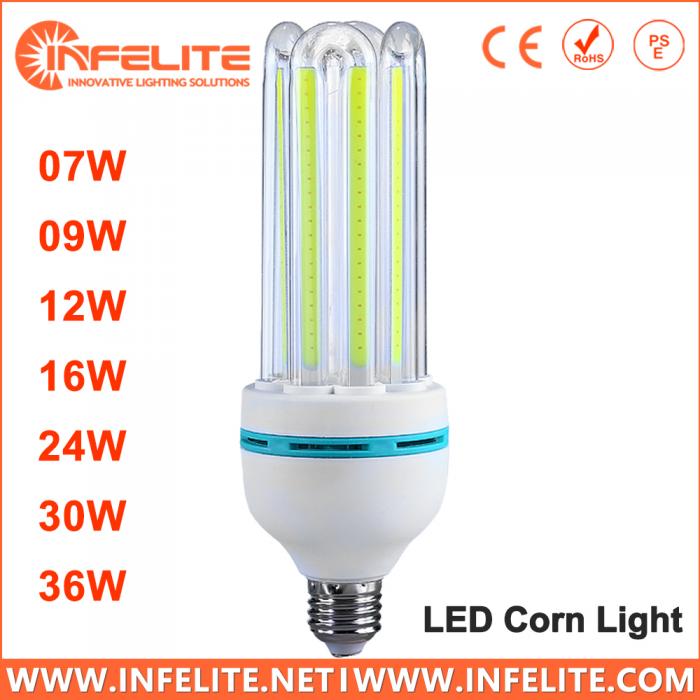

IN-COB-4U-16W LED Corn Light Bulb Lighting 5W 7W 9W 12W 16W 20W 30W E27 LED Corn Light
| Product Overview __________________________________________________________________ |
| Infelite U Shaped COB LED Corn Light Specifications: | ||||
| Item Model: | IN-COB-3U-5W | IN-COB-3U-7W | IN-COB-3U-9W | IN-COB-3U-12W |
| Power Output | 5 Watts | 7 Watts | 9 Watts | 12 Watts |
| Luminous Flux | 425lm | 595lm | 765lm | 1050lm |
| LED Quantity | COB Stick/6pcs | COB Stick/6pcs | COB Stick/6pcs | COB Stick/6pcs |
| Unit Size(mm) | 40*114mm | 42*140mm | 47*142mm | 52*156mm |
| Item Model: | IN-COB-4U-16W | IN-COB-4U-20W | IN-COB-4U-24W | IN-COB-5U-30W |
| Power Output | 16 Watts | 20 Watts | 24 Watts | 30 Watts |
| Luminous Flux | 1360lm | 1700lm | 2040lm | 2550lm |
| LED Quantity | COB Stick/8pcs | COB Stick/8pcs | COB Stick/8pcs | COB Stick/10pcs |
| Unit Size(mm) | 59*172mm | 73*225mm | 75*250mm | 85*270mm |
| Voltage Input | AC85∼265V 50⁄60HZ | |||
| Luminous Intensity | ≥ 85lm/W | |||
| Power Factor | PF >0.85 | |||
| CRI | Ra > 80 | |||
| Viewing Angle | 360 Degrees | |||
| Color Temp.(CCT) | 2700 ∼ 5000K | |||
| Working Temp | -20°C ∼ 50°C | |||
| Driver Type | IC Constant Current | |||
| IP Rating | IP44 Grade | |||
| Lamp Socket | E26/E27/B22/GU24 | |||
| Material | PCB + Glass + Fire Resistence Plistic | |||
| LED Life Span | Over 35,000 Hours | |||
| Detailed Images ____________________________________________________________________ |
1.Blister and white box for cardboard inner box, COB LED Corn Light 16W unit size: 59mm X59mm X 172mm. 100pcs/Carton.
2. Your logo printed on the inner box or the laser marked on the body of the bulb is available.
3.Neutral white cardbbard innerbox
| Payment & Shipping Method ___________________________________________________ |
1. Payment Method Support: Alibaba Trade Assurance, T/T, Western Union, MoneyGram, Paypal etc.
2.Shipping Method: DHL,UPS,FEDEX,TNT,EMS or appoint by the buyer,but except for mass production item.
3. Produce Time: 3~5 working days for the in stock ones, 7-12 working days for the produced.
4. Delivery Time: Most contry takes 4-10 days, the more precise ref time will be offered when ordering.
| Infelite Factory _____________________________________________________________________ |
Welcome To Visit And Inspect Our Infelite Factory !
Shenzhen Infelite Co.,Ltd is an innovative & experienced factory of LED commercial lighting fixture in China. With the complete industrial chain from SMT workshop to testing laboratory for LED illumination field, the main products of led tube light , led panel light, led downlight, led corn light, led filament light are produced strictly under ISO9001:2008 quality management system and with CE, RoHS, EMC, TUV, PSE,SAA certifications approved...
