Name:U SMD LED CFL Light
Product name:COB LED Corn Light
Available power:5W 7W 9W 12W 16W 24W 30W 36W
Beam angle:360 Degree
LED Chip:Epistar SMD 2835
Lamp Luminous Efficiency(lm/w):85
Working Lifetime(Hour):35000
Dimension:73240mm
Base Optional:E14/ E26 / E27 / B22
Color Temperature(CCT):2700~6500K
Material:Glass + Fire Resistence Plistic

PRODUCT DESCRIPTION

banner001

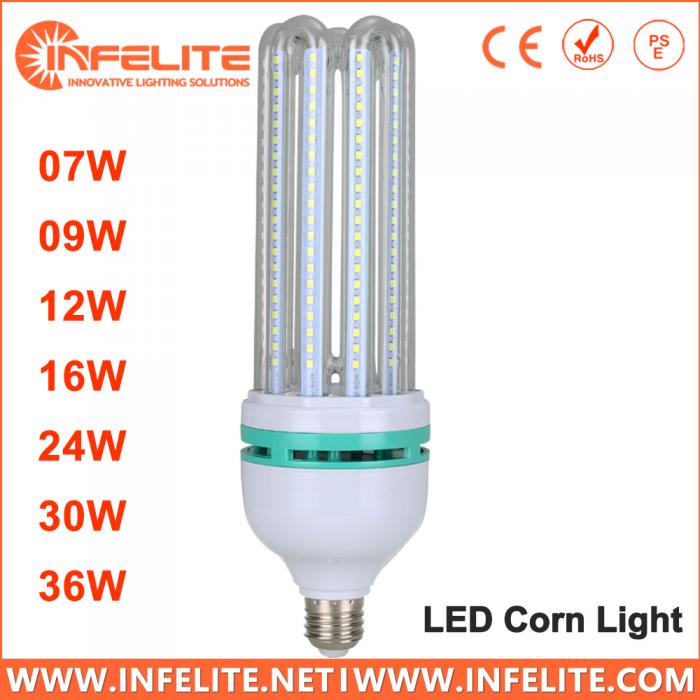

Infelite U Shaped LED Bulb Lamp Light E27 B22 5W 7W 9W 12W 16W 24W 30W 36W LED Corn Light





Product Overviews
 Product Overview __________________________________________________________________
Infelite U Shaped SMD LED Corn Light Specifications:
Item Model: IN-3U-5W IN-3U-7W IN-3U-9W IN-3U-12W
Power Output 5 Watts 7 Watts 9 Watts 12 Watts
Luminous Flux 425lm  595lm   765lm  1050lm
LED Quantity 2835/24pcs 2835/36pcs 2835/48pcs 2835/60pcs
Unit Size(mm) 40*110mm 40*126mm 40*135mm 50*166mm
Net Weight  25g 30g   35g  60g
Item Model:  IN-4U-16W  IN-4U-24W  IN-5U-30W IN-5U-36W
Power Output 16 Watts 24 Watts 30 Watts 36 Watts
Luminous Flux  1360lm 2040lm   2550lm 3060lm
LED Quantity 2835/80pcs 2835/120pcs 2835/160pcs 2835/200pcs
Unit Size(mm) 59*172mm 73*225mm 73*300mm 80*330mm
Voltage Input AC85∼265V 50⁄60HZ
Luminous Intensity ≥ 85lm/W
Power Factor PF >0.85
CRI Ra > 80
Viewing Angle 360 Degrees
Color Temp.(CCT) 2700 ∼ 5000K
Working Temp -20°C ∼ 50°C
Driver Type IC Constant Current
IP Rating IP44 Grade
Lamp Socket E26/E27/B22/GU24
Material Glass + Fire Resistence Plistic
LED Life Span Over 35,000 Hours

Our led corn light designed according to the compact fluorescent lamp.

1. High quality led chip.
2. Input voltage AC86-265V, if your voltage not suitable for this ,please do not buy or contact with me.
3. High lumen LED
4. Color Rendering Index is 80,that's more clearly for you to see things under light.
5. Widely color temprature for your choose from 2800K~6000K.
6. Beam angle is 360 degree, that is the most widely angle for lighting.
7. All of our LED Lights are meeting CE
8. Our led lights with long lifespan,35,000hrs.

Infelite LED Corn Light Product Shaped List: Click To View The Details Of the Product.

Shaped Type Power Output Base Optional
Standard Shaped SMD 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W E14 E26 E27 B22
Standard Shaped COB 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W
U Shaped SMD 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W
U Shaped COB 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W
Lotus Shaped SMD 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W
Spiral Shaped SMD 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W
Spiral Shaped COB 5W 7W 9W 12W 16W 24W 30W 36W 40W 50W
Detailed Images
 Detailed Images ____________________________________________________________________




USMD-24W-1USMD-24W-3USMD-24W-4USMD-24W-9USMD-24W-10USMD-24W-7USMD-AllUSMD-Aging

Packaging Detials

led-corn-packing

1.Blister and white box for cardboard inner box, unit size: 73mm X73mm X 220mm. 100pcs/Carton.

2. Your logo printed on the inner box or the laser marked on the body of the bulb is available.

3.Neutral white cardbbard innerbox
