| Name: | LED Circular Ring Tube Light |
|---|---|
| Product name: | led circular tube |
| Beam angle: | 180Degree |
| LED Chip: | Epistar SMD 2835 |
| Lamp Luminous Efficiency(lm/w): | 100 |
| Working Lifetime(Hour): | 50000 |
| Length: | 1.5m |
| Base Optional: | 4 Pin G10Q |
| Color Temperature(CCT): | 2800-3500K, 4000-4500K, 6000-6500K |
| Material: | Aluminum + PC (Transparent / Milky) |
PRODUCT DESCRIPTION

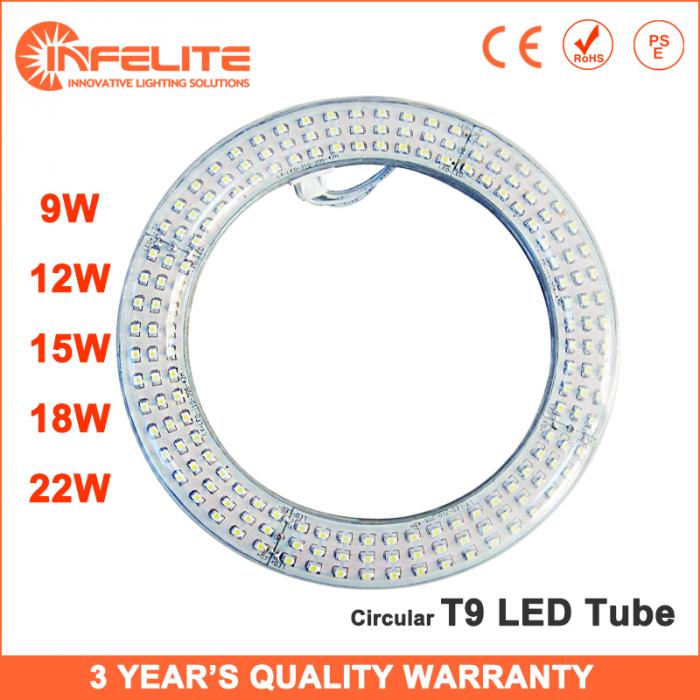

IN-T9C Die Cast Aluminum Body PC Housing 205mm 12W 225mm 14W 300mm 20W 375mm 24W Circular Round Ring LED Fluorescent Tube Light
| Infelite T9C G10Q Circular LED Tube Light Specifications: | ||||
| Model Number: | Power(w) | Lumen Flux(lm) | LED Qty.(smd) | Unit Size(mm) |
| IN-T9C-205-12W | 12 Watts | 1100-1150lm | 2835/56pcs | D:205*D:30±0.5mm |
| IN-T9C-225-15W | 15 Watts | 1400-1450lm | 2835/68pcs | D:225*D:30±0.5mm |
| IN-T9C-300-20W | 20 Watts | 1800-1980lm | 2835/96pcs | D:300*D:30±0.5mm |
| IN-T9C-375-24W | 24 Watts | 2300-2350lm | 2835/120pcs | D:375*D:30±0.5mm |
| Voltage Input | AC85-265V, 50/60HZ | |||
| Luminous Efficacy | 90lm/W, 100lm/W, 110lm/W, Epistar SMD Chip LM-80 Listed | |||
|
Power Factor/CRI |
PF >0.85 , Ra > 80, THD<14% | |||
| Viewing Angle | 180 Degrees | |||
| Color Temp.(CCT) | 3000-3200K, 4000-4500K, 6000-6500K | |||
| Working Temp. | -4°F-+122°F(-20℃-50℃, Work Humidity:5-95% R.H.) | |||
| Driver Type | Built-in Constant Current IC Driver, Power Tolerance:<2%, No Need Ballast | |||
| Light Decay | <1% Under 3000H Constant Work | |||
| IP Rating | IP54 Grade, Class II | |||
| Lamp Socket | 4-Pin G10Q | |||
| Prodoct Material | Aluminum PCB + Aluminum Body(375mm is PC) + PC Housing | |||
| Life Span | Over 5,0000 Hours, 3 Years' Warranty | |||
| Housing Color | Milky/Clear(Transparent), Support Your Logo Printed On Lamp Body | |||
Infelite LED Tube Light Features:
1. Easy installation plug&play circular led tube light, perfect to replace the old circular fluorescent lamp.
2. Brand new Bridgelux, Epistar SMD2835 light source ensure the high luminance & lower light decay.
3. Built-in high-performance frequency constant current IC driver, no need of ballast and electronic starter.
4. Round shape die cast aluminium body and PC cover, good heat dissipation, durable and safety usage.
5. Environmental protection, no ultraviolet and infrared radiation, no mercury and lead for human healthy.
6. Double row lamp bead design, uniform illumination with no shadow areas, widely used for photography.
7. Available dimension: 205mm, 225mm,300mm, 375mm and customized size as your request(MOQ:3K).
LED Circline Light Applications:
Widely used in household lighting, decoration, photography, sitting room, bedroom, wall lamp, table lamp, toilet, balcony, kitchen, dome light, the bar, schools, hospitals, factories, offices, shopping malls, office buildings, corridor, stair lighting, hotel, guest houses, shopping malls, supermarkets, cold drinks, cake shop, delicatessen, bars, coffee shops, teahouses, culture, entertainment, business places.
Easy Installation Steps:
1. Turn off power. 2. Remove the round fluorescent tube, ballast and starter. 3. Install the Circular T9 LED tube and connect the socket all the way in. 4. Turn on power, done.
Luminous Flux And Power Output Repalcements:
IN-T9C-205-12W: Replace Circular Fluorescent Tube 20-22W
IN-T9C-225-15W: Replace Circular Fluorescent Tube 30-32W
IN-T9C-300-20W: Replace Circular Fluorescent Tube 36-40W
IN-T9C-375-24W: Replace Circular Fluorescent Tube 50-60W
1.T9 Circular LED Fuorescent Tube Light 300mm 20W, Unit Size:D:300*D:30±0.5mm.
2.Pkgs. Size:340*340*50mm, Carton Size:55*35*35cm, G.W.:13.55KG,10pcs/Carton.
3.Neutral Color Cardboard Inner Box, K=K 5Ply Carton With Corner Protector Packing.
4.Welcome Your Logo Printed On The Lamp Or Packing Box For Your Brand Marketing.
1.Payment Support:Alibaba Trade Assurance, T/T, Western Union, MoneyGram, L/C, Paypal
2.Shipment Method:Air Express, Sea Freight, Railway To Europe Or Appointed By The Buyer
3.Leading Time:1~2 Days For The In Stock Ones, 4-12 Days For OEM Order And Bulk Order
4.Delivery Time:Express:3-7 Days, Sea Freight:30-35 Days, Railway To Europe:20-25 Days
Welcome To Visit And Inspect Our Infelite Factory !
Shenzhen Infelite Co.,Ltd is an innovative & experienced factory of LED commercial lighting fixture in China. With the complete industrial chain from SMT workshop to testing laboratory for LED illumination field, the main products of led tube light , led panel light, led downlight, led corn light, led filament light are produced strictly under ISO9001:2008 quality management system and with CE, RoHS, EMC, TUV, PSE,SAA certifications approved..
1. Innovative Customize Solutions
Infelite provide high quality LED lighting solutions for the commercial sectors at competitive pricing, maximizing utility rebates and reasonable financing charges .The innovative solutions involve a new lighting fixture model design assistance, molding, photo-metric layout consulting, ROI analysis and lighting solution audit etc. Your logo printed on the packing box or laser marked on the products is available
2. Customized OEM&ODM Service
If our existing design is not satisfactory ,just tell us your request of design ,such as lamp size,lumen output ,lamp shape ,Smart Watt could design out the product you want .we can make out the samples for you in as fast as 7~10 days, and the test report is free for the samples.
3. 3 ~ 5 Years’ Quality Warranty
Our quality management system is compliant with standard ISO 9001:2008, all products sold at Infelite have 3 years limited warranty period at least, some items boast have 5 year limited warranty.
If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order. Welcome to choose Infelite lighting products!
