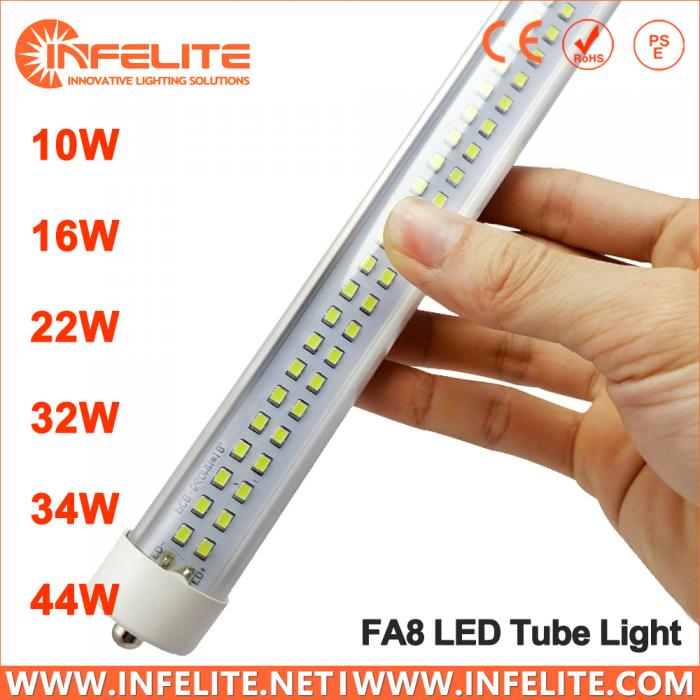

Single Pin FA8 Socket T8 Led Fluorescent Tube-Product Center-SHENZHEN INFELITE CO., LTD-

Name:	FA8 Tube Light
Product name:	FA8 Led Tube Light
Beam angle:	180Degree
LED Chip:	Epistar SMD 2835
Lamp Luminous Efficiency(lm/w):	100
Working Lifetime(Hour):	50000
Length:	1.5m
Base Optional:	4 Pin G10Q
Color Temperature(CCT):	2800-3500K, 4000-4500K, 6000-6500K
Material:	Aluminum + PC (Transparent / Milky)

IN-FA8-18W Single Pin FA8 Socket T8 Led Fluorescent Tube 10W 12W 18W 24W 36W 40W FA8 LED Tube Light 18W

Product Overviews

Product Overview __________________________________________________________________

Infelite Single Pin FA8 T8 LED Tube Light Specifications:
Item Model:	IN-FA8-10W	IN-FA8-12W	IN-T8V-18W	IN-FA8-24W
Power Output	10 Watts	12 Watts	18 Watts	24 Watts
Luminous Flux	950m	1150lm	1700lm	2250lm
LED Quantity(SMD)	2835/48pcs	2835/56pcs	2835/96pcs	2835/120pcs
Length (mm)	600mm/2Ft	900mm/3Ft	1200mm4/Ft	1500mm/5Ft
Item Model:	IN-FA8-36W	IN-FA8-40W
Power Output	36 Watts	40 Watts
Luminous Flux	3400lm	3800lm
LED Quantity	2835/176pcs	2835/192pcs
Length (mm)	1800mm/6Ft	2400mm/8Ft
Voltage Input	AC85∼265V 50⁄60HZ
Luminous Intensity	≥ 95lm/W
Power Factor	PF >0.95
CRI	Ra > 80
Viewing Angle	150 Degrees
Color Temp.(CCT)	2700∼3200K, 4000∼4500K, 6000∼6500K
Working Temp	-20°C ∼ 50°C
Driver Type	Constant Current Driver
Base Optional	FA8 Single Pin Base
IP Rating	IP55 Grade
Material	Aluminum Body + PC Cover (Transparent / Milky)
LED Life Span	Over 50,000 Hours

Infelite LED Tube Light Was Degigned To Replace The Traditional Fluorescent Tube:

1. Energy saving:Up to 80% less energy consumption than traditional fluorescent lamps;

2. The lumen have 80lm/w, 110lm/w, 130lm/w and 130lm/w optional,5 years' warranty for 130lm/w;

3. Wider and thicker aluminum body and PCB, excellent heat dissipation;

4. Fosted or Clear cover options( 1/2 Aluminum pipe +1/2 Clear or frosted PC cover );

5. Fire retardant caps, more safe and reliable;

6. Hight CRI, which can reflect the original color of the object;

7. Isolated and non-isolated driver for selection, for different solutions;

8. Light-up instantly and do not flicker, Harmless for eyes.;

9. Long lifespan 50,000 hours compared with the traditional fluorescent light;

10. Wide application: Home, Offices, Shops, Department Stores, Clubs, Restaurants,Hotels,Supermarkets etc.
