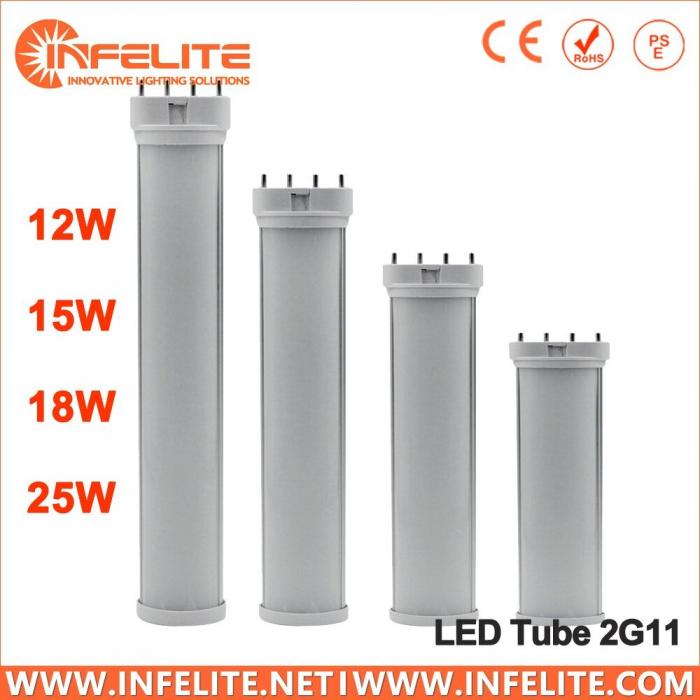

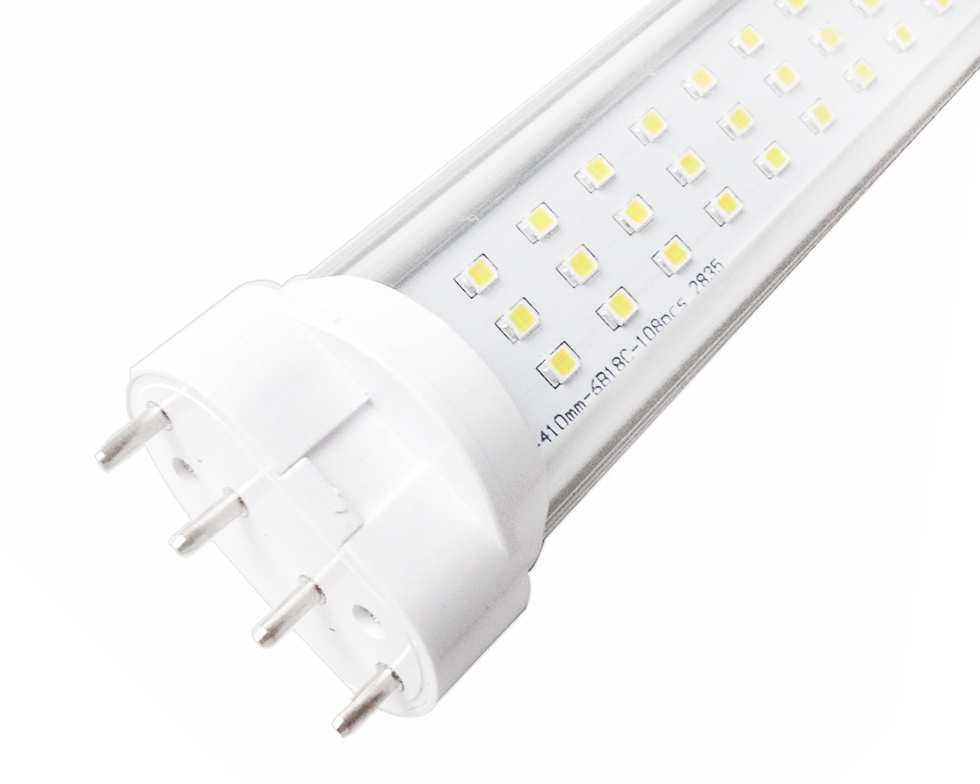

Name:2G11 4Pin LED Tube Light
Product name:2G11 4Pin LED Tube Light
Beam angle:180Degree
LED Chip:Epistar SMD 2835
Lamp Luminous Efficiency(lm/w):100
Working Lifetime(Hour):50000
Base Optional:4 Pin G10Q
Color Temperature(CCT):2800-3500K, 4000-4500K, 6000-6500K
Material:Aluminum + PC (Transparent / Milky)





IN-FA8-18W Single Pin FA8 Socket T8 Led Fluorescent Tube 10W 12W 18W 24W 36W 40W FA8 LED Tube Light 18W



Product Overviews
 Product Overview __________________________________________________________________
Infelite Single Pin FA8 T8 LED Tube Light Specifications:
Item Model: IN-FA8-10W IN-FA8-12W IN-T8V-18W IN-FA8-24W
Power Output 10 Watts 12 Watts 18 Watts 24 Watts
Luminous Flux 950m  1150lm   1700lm 2250lm
LED Quantity(SMD) 2835/48pcs 2835/56pcs 2835/96pcs 2835/120pcs
Length (mm) 600mm/2Ft 900mm/3Ft 1200mm4/Ft 1500mm/5Ft
Item Model:  IN-FA8-36W  IN-FA8-40W
Power Output 36 Watts 40 Watts
Luminous Flux  3400lm 3800lm
LED Quantity 2835/176pcs 2835/192pcs
Length (mm) 1800mm/6Ft 2400mm/8Ft
Voltage Input AC85∼265V 50⁄60HZ
Luminous Intensity ≥ 95lm/W
Power Factor PF >0.95
CRI Ra > 80
Viewing Angle 150 Degrees
Color Temp.(CCT) 2700∼3200K, 4000∼4500K, 6000∼6500K
Working Temp -20°C ∼ 50°C
Driver Type Constant Current Driver
Base Optional FA8 Single Pin Base
IP Rating IP55 Grade
Material Aluminum Body + PC Cover (Transparent / Milky)
LED Life Span Over 50,000 Hours

Infelite LED Tube Light Was Degigned To Replace The Traditional Fluorescent Tube:

1.  Energy saving:Up to 80% less energy consumption than traditional fluorescent lamps;

2.  The lumen have 80lm/w, 110lm/w, 130lm/w and 130lm/w optional,5 years' warranty for 130lm/w;

3.  Wider and thicker aluminum body and PCB, excellent heat dissipation;

4.  Fosted or Clear cover options( 1/2 Aluminum pipe +1/2 Clear or frosted PC cover );

5.  Fire retardant caps, more safe and reliable;

6.  Hight CRI, which can reflect the original color of the object;

7.  Isolated and non-isolated driver for selection, for different solutions;

8.  Light-up instantly and do not flicker, Harmless for eyes.;

9.  Long lifespan 50,000 hours compared with the traditional fluorescent light;

10. Wide application: Home, Offices, Shops, Department Stores, Clubs, Restaurants,Hotels,Supermarkets etc.

Infelite LED Tube Light Product List:

Produc Type Product Power Output
T2G11 Plus 12W 15W 18W 24W
T5 Seprated 7W 9W 16W 18W
T5 Integrated 5W 8W 12W 16W 20W
FA8 Single Pin 10W 12W 18W 24W 36W 40W
T8 Seprated 9W 14W 18W 24W
T8 Integrated 10W 15W 24W 36W
T8 V-shaped 18W 26 36W 45W 52W 72W
T9 Circular 9W 12W 15W 18W22W
T10 Seprated  10W 15W 18W 24W
